G-750

Base data

Type

Single Prop

Make

Gogetair

Model

G-750

Year built

2024

Registration No.

S5-MMW

Location

Switzerland, LSZO

Total Time (TTAF)

135 h

Price

CHF 340,000 (~ US$ 407,964)

EU VAT paid

no

Engine(s)

Number of engines

1

Make/Model

Bombardier-Rotax GmbH

Power

133 PS

Prop Make/Model

MTV-34-1-A/175-200

Description/Details of engines

TTAF: 134.8 Engine Type: ROTAX 915 iS 3 Number of Engines: 1 Manufacturer: Bombardier-Rotax GmbH Takeoff Power: 140 HP (104 kW) – max 5 min Max Continuous Power: 133 HP (99 kW) @ 5,500 RPM Propeller Manufacturer: MT-Propeller Entwicklung GmbH Model: MTV-34-1-A/175-200 Number of Blades: 3 Pitch: Hydraulic, in-flight adjustable

Avionics

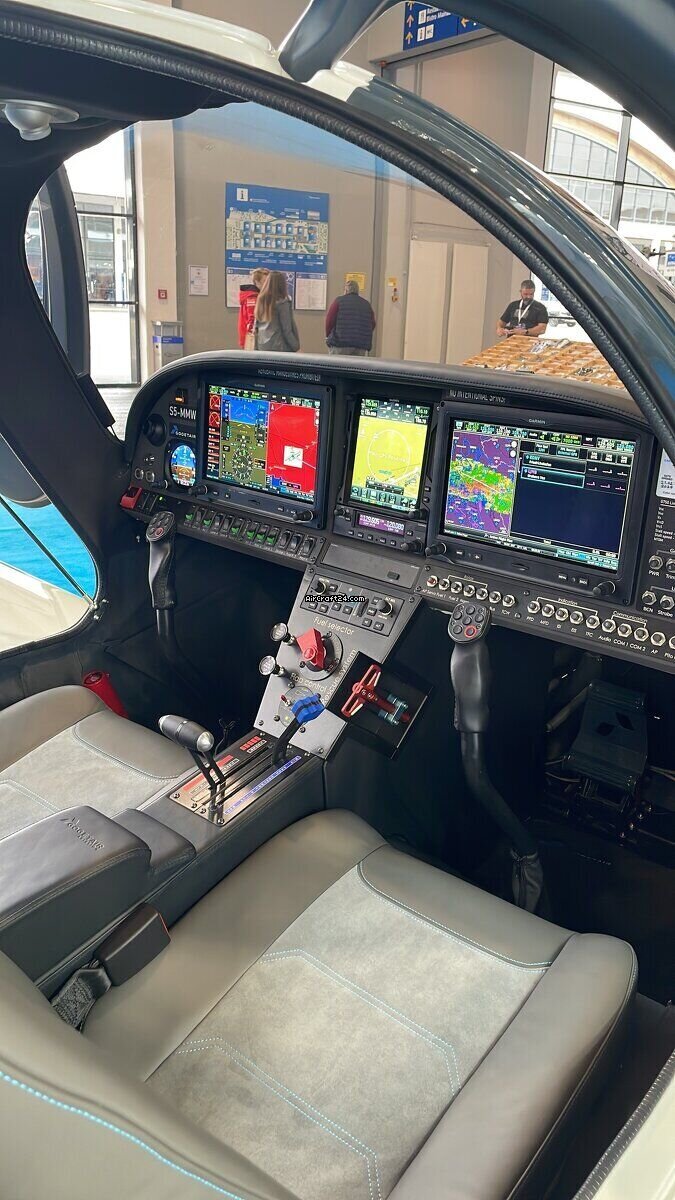

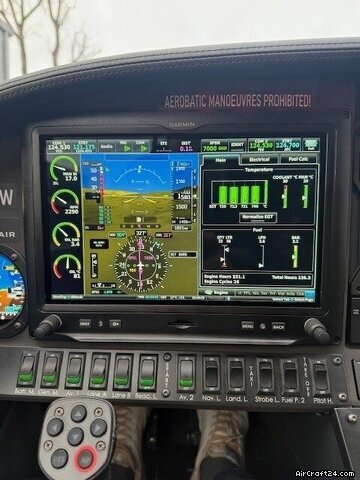

Primary Flight Display (PFD1 Main): Garmin G3X – 010-01057-00, S/N: 350012588 GDU 460/465 Install Kit: Garmin G3X – 010-12150-00 PFD1 Backup Battery: IBBS 12V-3Ah – 202210825 PFD2 Backup: Garmin G3X – 010-01057-00, S/N: 350012592 Central GPS/COM/NAV: Garmin GTN 750Xi – 010-02002-01, S/N: 5FR007271 Autopilot: Garmin GMC 507 – 010-01946-00, S/N: 5H1100565 AP Servo Pitch / Roll: Garmin GSA 28 – 010-01068-20 Radio / COM: Garmin GTR 225A – 010-02486-50, S/N: 44V002979 Audio Panel: Garmin GMA 245R – 010-01471-01 Transponder: Garmin GTX 45R – 010-01757-01, S/N: 4YC040903 Traffic System (ADS-B / FLARM): LXNAV Power Mouse – S/N: 1553 ELT: Artex ELT 345 – A3-06-2880, S/N: 398419-032 Pitot Tube: Garmin GAP 26, 12V Heated – 010-01074-20, S/N: 34F700680 Airborne Weather Devices: Golze Engineering ADL190 & ADLRS232 Engine Indication System: Garmin GEA 24 – 010-01042-00, S/N: 2J2022487 GPS Antennas: GA35 & GA56 Low Profile – S/N: 211905 / 59442914 VHF / COM & NAV Antennas: Rami CI-121, AV-10, AV-525, AV-22, AV-200 Headset Install Connector Kit: Bose LEMO – 323172-0010 Marker Beacon / Antenna Coupler: Rami AV-64 / AV-547

Equipment

Fuel & Oil Fuel Tanks: 2 (wing leading edge) Total Capacity: 144 L (38 US gal) Usable Fuel: 136 L (36 US gal) Oil Tank Capacity: 3.5 L (0.92 US gal) Dimensions Wingspan: 9.65 m (31 ft 8 in) Wing Area: 11.9 m² (128 ft²) Aspect Ratio: 7.8 Length: 6.98 m (22 ft 11 in) Height: 2.21 m (7 ft 3 in) Mean Aerodynamic Chord (MAC): 1.21 m Weights & Loading Max Takeoff Weight: 750 kg (1,653 lbs) Max Front Seat Load (each): 100 kg (220 lbs) Baggage – Cargo Area 1: 50 kg (110 lbs) Baggage – Cargo Area 2: 25 kg (55 lbs) Wing Loading: 63.03 kg/m² Power Loading: 6.52 kg/HP Cabin & Baggage: Dual side doors with central lock. Cargo area 2 accessible via fuselage door behind pilot (left side). Max baggage 25 kg.

Other remarks

Options / Extras Lighted instrument panel – 11-05224 2x Ceiling lights (EyeBeam RGBW) – AVE-EBBPS-00T / AVE-EBBA31-1605-00984 / A15-12 Beacon light on rudder (AirBurst NG DayLite) – AVE-ABSYR-D01, S/N: 49201-2205-00002 Front & rear facing camera – Bawaqaf RVC Windshield heating – Gogetair GGA-VH1 Built-in O2D2 2-place oxygen system – MH Oxygen AH501 Master Caution / Master Warning – Pushaero, S/N: 23PRI00806 Battery connector for charging 12V – TBD Oil thermostat 915 – RS-Flight Systems, SKU 10-366, S/N: 1.23.07.023 USB Charger GSB 15 – Garmin, S/N: 63M254364
